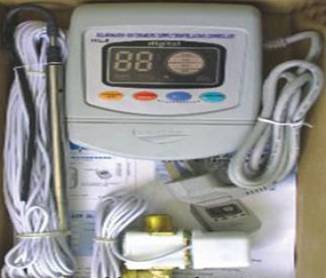

S868C3E-1 controller
Functions:
·
Functional display
·
Up to 2 temperature sensor for tanks
·
Optionally: pump speed control, solar
operating hours counter and
·
Thermostat function
·
Temperature difference circulation 2-15°
C (default 10° C )
·
Housing in outstanding design and easy
user friendly operation
·
PT1000 temperature sensor
Features:
·
Outline sizes of display: 120x120x18mm
·
Power consumption:<5W
·
Accuracy of temperature measuring: +/-2°
C
·
Range of temperature measuring:
0-99° C
·
Controlled power of circulation pump:
<600W
·
Power of electric heating</=2kw
·
S868C3E-1 controller is used for high
pressure solar thermal systems, persuades by a
clear operating concept and is equipped with the newly developed
illuminated combined display with system monitoring.
·
Flashing display for sensors, pumps, and
electric heater enable an immediate allocation of the temperatures,
temperature difference and active actuators.
·
Adjustment and control of the solar
system can be easily realized.
|
