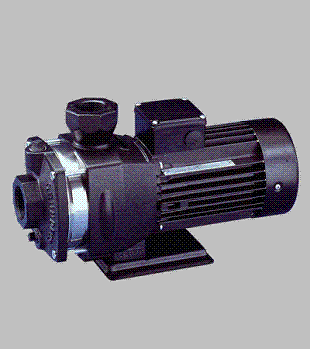

The CH 2-40 A-W-A CVBE pump
·
Reference: 43502104
·
Centrifuge multicellular
horizontal pump
·
Centrifuge multicellular
with axial suction hole and radial
turning back hole.
·
Monophased engine with
build-in thermo security.
·
Pump and engine fixed
on base.
·
Pump equipped with
mechanical garniture.
·
Wheels, intermediary rooms
and shaft in stainless steel.
·
Suction & turning
back rooms in steel.
Liquid:
·
Liquid temperature
range: 0 .. 90 °C
Technique:
·
Nominal throughput: 2.5
m³/h
·
Nominal pressure: 23.8
m
·
Mechanical garniture:
CVBE
·
Tolerance curve: ISO
9906 Annex A
Matrrial:
·
Pump boddy: Steel
·
EN-JL1030 DIN W.-Nr.
·
30 B ASTM
·
Mobile wheel: stainless
steel
·
1.4301 DIN W.-Nr.
·
304 AISI
Installation:
·
Room temperature range:
0 .. 55 °C
·
Maximum pressure at
indicated temperature: 6 / 90 bar / °C
·
10 / 40 bar / °C
·
Suction pump: Rp 1
·
Turning-back pump: Rp 1
Electric data:
·
Engine type: MG71
·
Power consumption - P1:
570 W
·
Feeding frequency: 50
Hz
·
Nominal power: 1 x
220-240 V
·
Nominal power: 2.6 A
·
Condensator capacity - working:
10 μF/400 V
·
Protection (IEC 34-5):
IP54
·
Isolation (IEC 85): F
Misc:
·
Net weight: 10.9 kg
·
Brut weight: 11.5 kg
·
Packaging: 0.019 m³
|
