·The warm water molecules move in an
upwards movement until they reach the collector

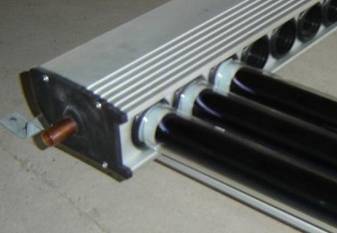

·The collector will dispense its warm
water either via simple gravity, either via a pump which will manage the
water circulation inside the installation.

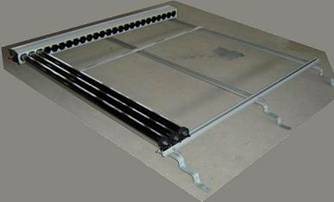

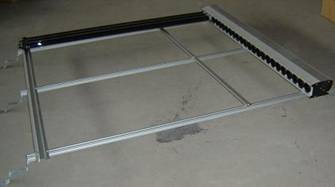

The tubes framework
·This framework is designed to bear
the vacuum tubes.
·The required number of framework and
tubes depends of the requested performance of the installation.

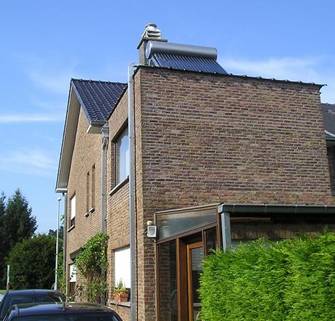

Domestic Application
·The solar panel on the picture is
installed on a flat roof.
·This is a representative configuration
for the warming of running water for the consumption of a normal family.
