Technical Features: The Boilers
|
|
Pressure

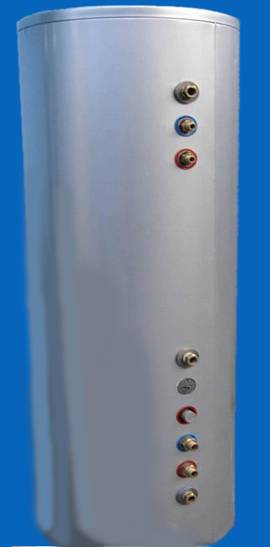

Boiler / 200 liters
|
Capacity
|
200 liters
|
|
Internal diameter
|
440 mm
|
|
External diameter
|
560 mm
|
|
Material and width of the internal component
|
SUS304￡1.2
|
|
Material and width of the hull
|
Metal color
|
|
Isolation thickness
|
50 mm
|
|
Isolation material
|
Polyurethane
|
|
Water pipe section
|
G3/4″
|
|
Heating power
|
2.0 KW
|
|
Diameter of the copper coil
|
12,5 mm
|
|
Length of the copper coil (lowest part)
|
15 m
|
|
Length of the copper coil (upper part)
|
10 m
|
|
|
|
SPS

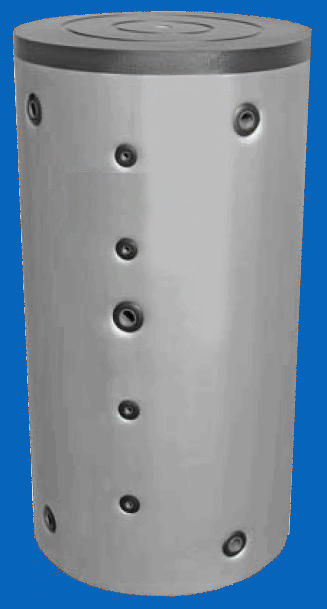

Boiler from 500 to 5000 liters
|
Capacity
|
From 500 to 5000 liters
|
|
Diameter not isolated
|
From 650 to 1600 mm
|
|
Diameter isolated
|
From 850 to 1800 mm
|
|
Height not isolated
|
From 1640 to 2790 mm
|
|
Height isolated
|
From 1720 to 2990 mm
|
|
Max temperature
|
95°
|
|
Max pressure
|
6 bars
|
|
Weight
|
From 84 to 696 kg
|
|
|
